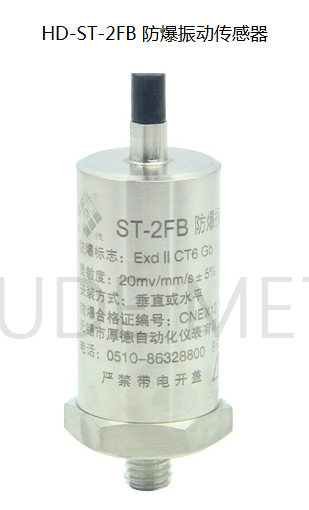

HD-ST-2FB explosion-proof vibration probe

ST-2FB explosion-proof vibration sensor HD-ST-2FB explosion-proof vibration probe is A flameproof structure made in accordance with the relevant national explosion-proof standards. Its explosion-proof mark is ExdⅡCT6, with a fully stainless steel housing and armored cable. It is suitable for factories where or where Class ⅡA, ⅡB, and ⅡC exist. Explosive hazard zones 1 and 2 locations formed by the mixture of flammable gases, vapors and air in groups T1 to T6.

Technical Specifications of ST-2FB Explosion-proof Vibration Sensor HD-ST-2FB Explosion-proof Vibration probe

Sensitivity: 20mV/mm/s±5%

Frequency response: 5 to 300Hz±8%

Natural frequency: approximately 12Hz      Amplitude limit: 2mm (peak-to-peak)

Acceleration: 10g

Installation method: Vertical or horizontal

Temperature range: -30℃ to 120℃

Relative humidity: No condensation up to 95%, and no strong electromagnetic field interference in the surrounding area

Overall dimensions: φ35×58

Installation method: Drill a hole of M10×1.5 with a depth of 10mm at an appropriate position on the bearing housing and fix it with double-ended screws

Weight: Approximately 250g
