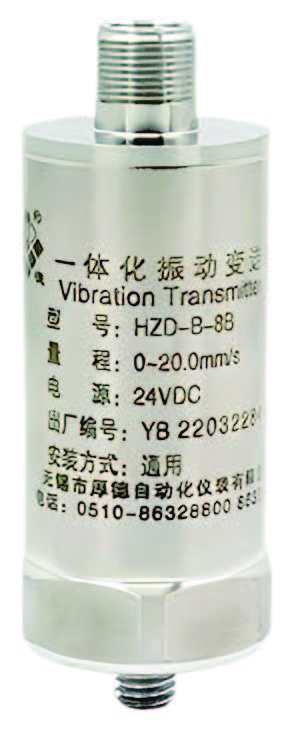

HZD-B-8B Vibration Transmitter
Application
HZD-B-8B vibration transmitter, which integrates vibration veloci-ty
sensors with precision measure circuit, realizes traditional vibration measurement
system function of ‘sensors & monitoring instrument’ mode. It is suitable
for constructing economical high precision vibration measurement system.
The transmitter can connect directly to DCS, PLC or other systems, and it is an
ideal choice for fans, water pumps and other industrial equipments to measure
vibra-tion.
Technical Index
■ Power Supply: 24VDC±10%
■ Input:
Signal: from built-in vibration velocity sensor
Sensitivity: 20 mV/mm/s±5%
■ Frequency Response: 5～1000Hz(-3dB)
■ Range:
Vibration Displacement: 0～500μm ( P-P )
Vibration Intensity: 0～50.0mm/s ( RMS )
■ Output:
Current Output: 4～20mA active
Output Load: ≤500Ω
■ Temperature:
Operating: -25℃～+65℃
Storage: -40℃～+85℃
■ RH: up to 95%, no condensation
■ Protection Level: IP66
■ Dimensions: see figure
HOUDE METER MANUAL
⑤
HOUDE METER MANUAL
■ Hole Size: M10×1.5; 10mm in depth(special specifications can be
customized)
■ Weight: about 350g
