LINEAR VARIABLE DIFFERENTIAL TRANSFORMER (LVDT)
LVDT Linear Variable Differential Transformer is a highly reliable linear transformer that provides long-range measurement of turbine valve opening casing expansion and oil level. It has a broad range of applications due to its durability and measuring accuracy.
Principle of measurementAs shown in following figure, when an iron core moves within the wound coils, the impedances between A and B, and B and C changes. Since these impedance changes are proportional to the movement of the iron core, a voltage proportional to the movement of the iron core can be generated by obtaining the difference between Vab and Vbc when a constant voltage is applied between A and C.
Specifications
Stroke:
TDZ-1 Valve Position Transducer: 0 ~ 20、35mm
TD-1 Valve Position Transducer: 0 ~ 20、35、50、100、150、200、250、300、350、400、500、600mm
TD-2 Case Expansion Transducer: 0 ~ 25、35、50mm
UT-81 Oil Level Transducer: ±100、±200、±300、±400、
Exciation:1500Hz，10 ~ 20VAC
Output impedance: 250Ω±50Ω（1500Hz）
Linearity: ±1.5% of F.S. at 25℃
Operating temperature: -10 ~ 100 ℃
Relative humidity:≤ 90% (noncondensing)
Model Code No.

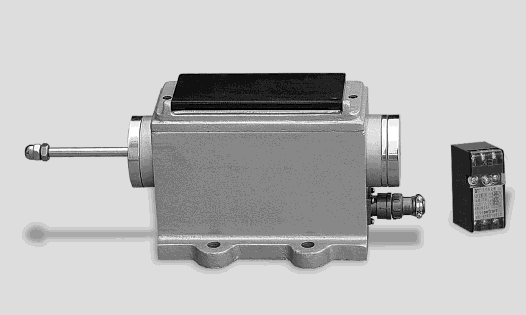

TD-2 Case Expansion Transducer
TD-2-□□
Stroke

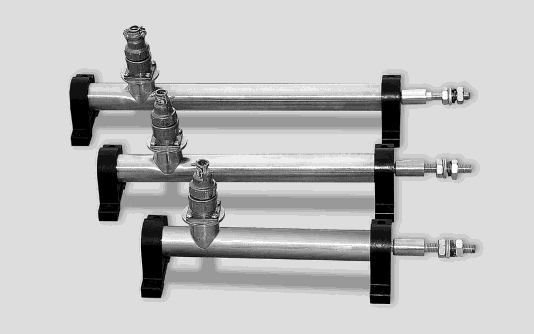

TD-1 Valve Position Transducer
TD-1-□□□
Stroke
TDZ-1 Valve Position Transducer
４
TDZ-1-□□□
５

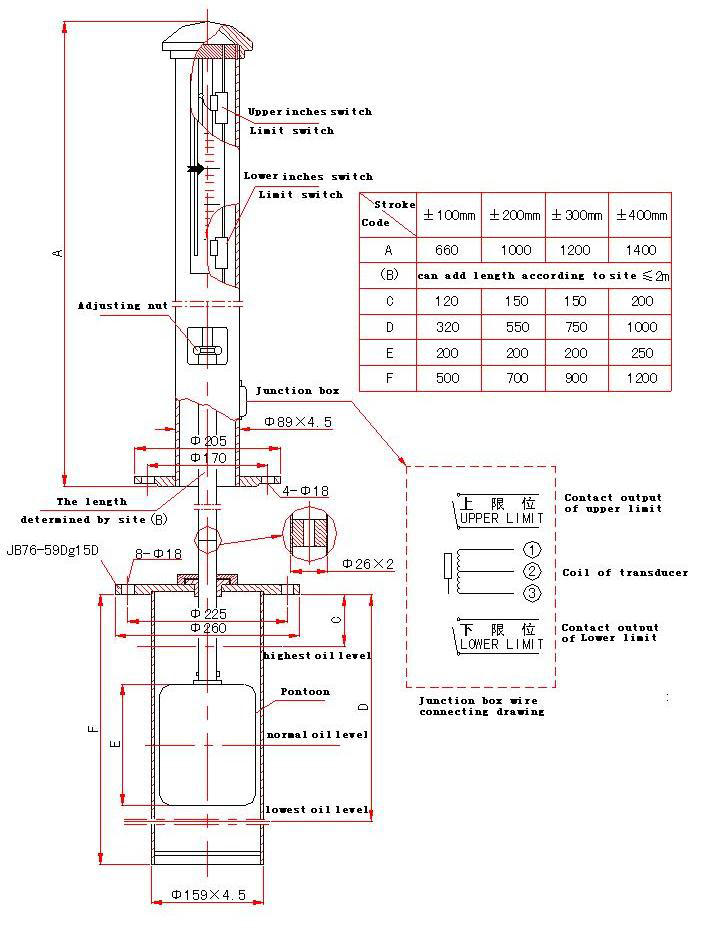

UT-81A Outline Drawing
Stroke
UT- 81 Series UT-81A
